Steinway & Sons grand piano restoration project

This is the page devoted to a partial restoration project of a Steinway & Sons grand piano (Model A, Serial Number 77972) that was originally manufactured in 1863. Below you will be able to get more familiar with the whole process by following the pictures and short descriptions.

The entire project took about 5 months to complete. Considering the complexity and detail oriented work the entire project could not be completed faster.

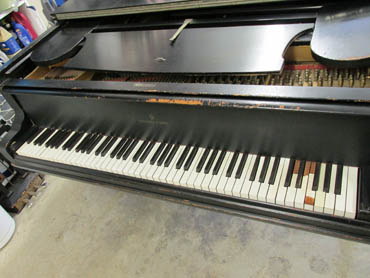

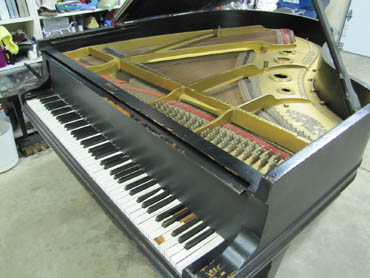

At the beginning of May 2014 the piano was delivered to my shop:

piano1

Right from the beginning I knew that this will involve a lot of work. The piano had to be re-strung with new strings, tuning pins and understring felt. The entire metal plate inside of the piano also was a candidate for a new paint. The entire action mechanism was completely worn out and all the components (hammers, whippens, backchecks, damper felt, etc.) had to be replaced with new ones.

piano2

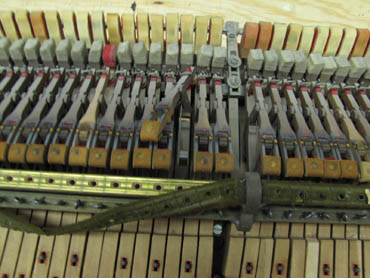

The above picture shows the completely worn out action of the piano.

piano3

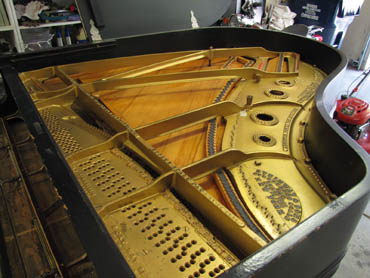

This is the piano with old strings, dampers, and tuning pins removed.

piano4

The damaged keys also had to be restored. Missing wooden pieces, worn out key bushings and backchecks required a careful restoration process.

piano5

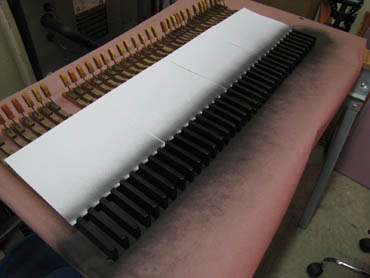

The black keys (sharps) had to be repainted and refinished.

piano6

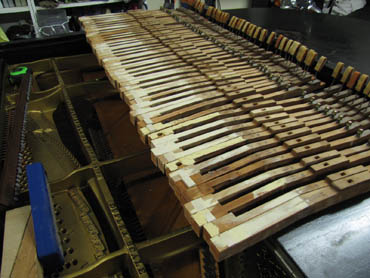

Part of the keys restoration procedure.

piano7

Brand new hammer shanks on the cleaned action rail.

piano8

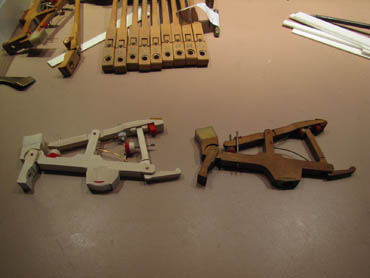

A comparison between the old and new whippens.

piano10

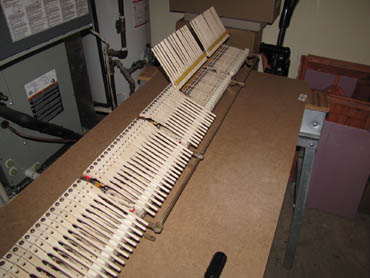

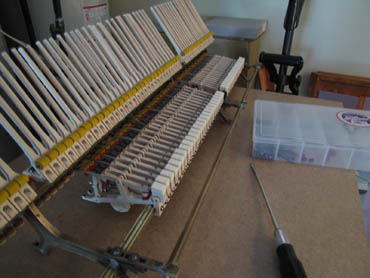

New hammer shanks and whippens being installed.

piano11

Looks nice !

piano12

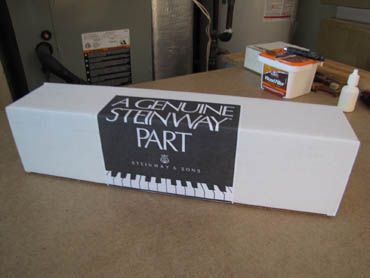

The Genuine Steinway Parts were used during the entire process of the restoration. This box contains new hammer heads.

piano13

Installation of the new hammer heads.

piano14

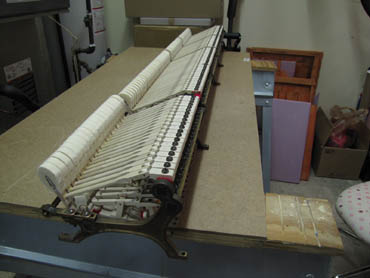

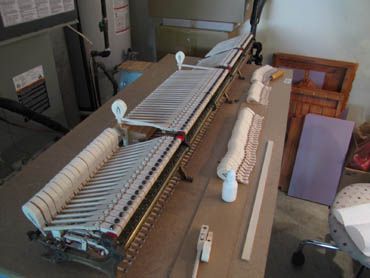

All whippens and hammers have been installed.

piano15

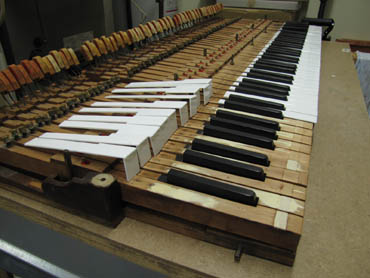

After the repair of the keys, the new key tops are being applied.

piano16

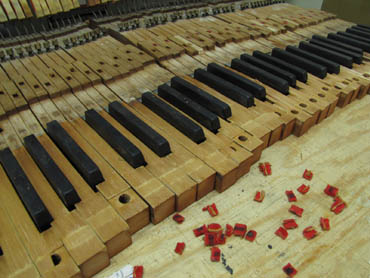

The original keys' end felt and backchecks also had to be replaced with new ones.

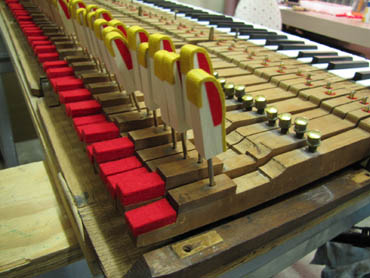

piano17

Installation of the new front rail punchings.

piano19

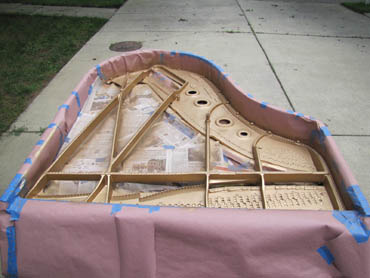

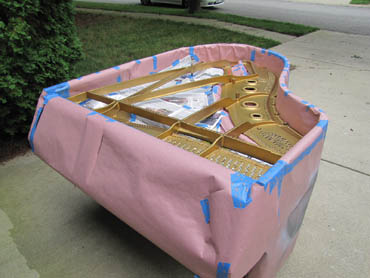

Time for painting the main metal plate inside of the piano.

piano20

The metal plate has been painted and is ready for new strings and dampers.

piano21

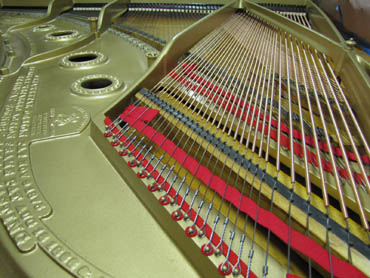

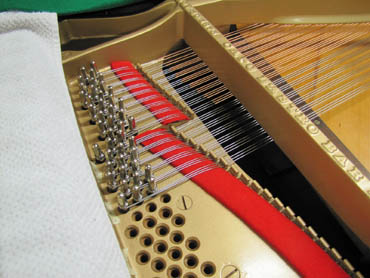

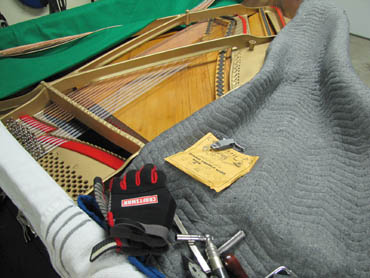

The new tuning pins, strings, and understring felt are being installed.

piano22

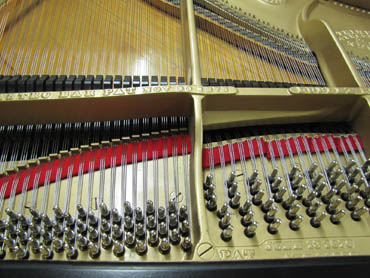

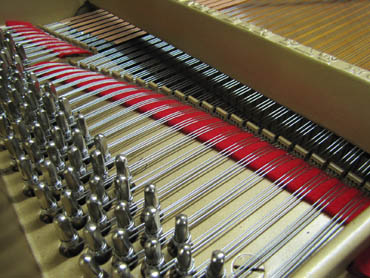

Stringing process continues.

piano23

piano24

piano25

piano26

piano27

piano28

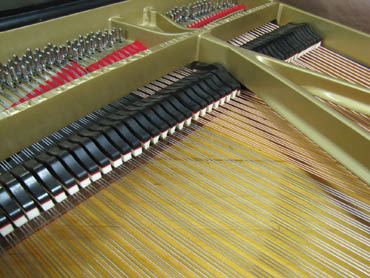

After finishing the stringing process the time for the installation of new dampers has arrived.

piano29

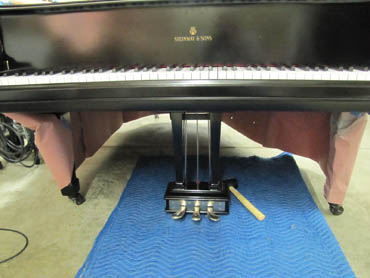

The refinished pedal lyre has been installed.

piano30

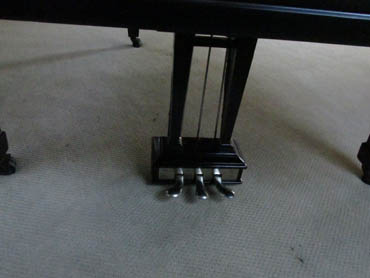

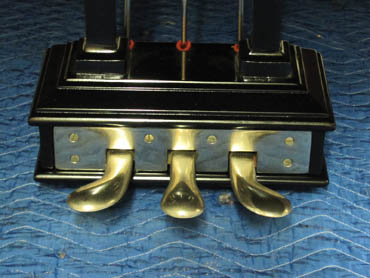

Pedals of course had to be refinished and polished as well. A detailed approach to a restoration process makes a big difference.

piano31

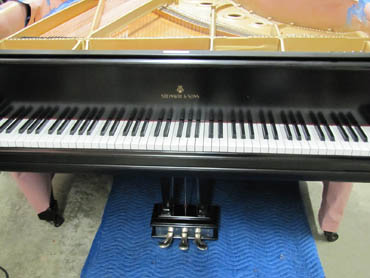

The Steinway & Sons grand piano is almost ready for the delivery to a client.

As I was busy rebuilding and restoring the inside components of the piano, Jeff Thar (the owner of the "Furniture Workshop") was repairing and restoring the finish of the instrument.

piano32

Few pictures of the piano before Jeff's restoration process:

piano33 piano34

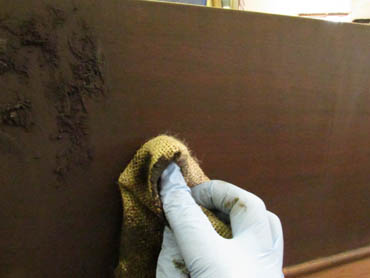

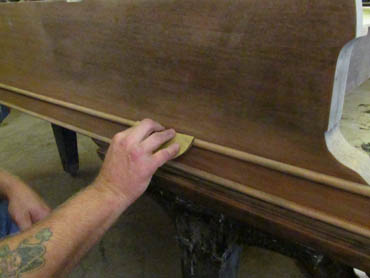

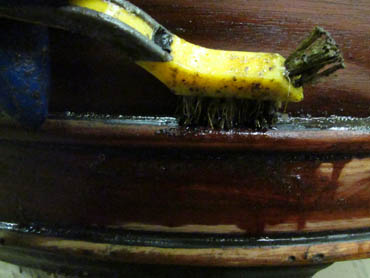

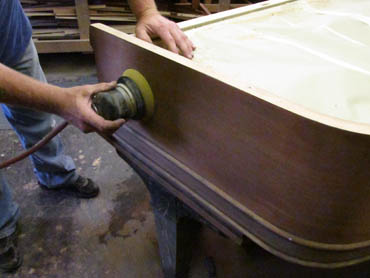

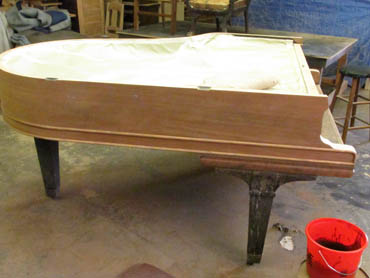

The old finish had to be stripped

piano35 piano36

piano37 piano38

piano39 piano40

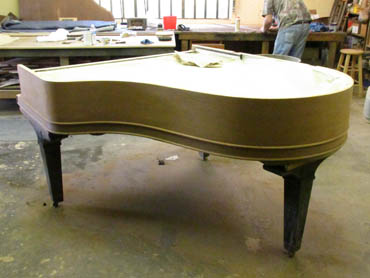

Staining process has begun

piano41 piano42

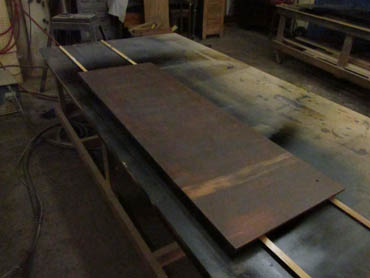

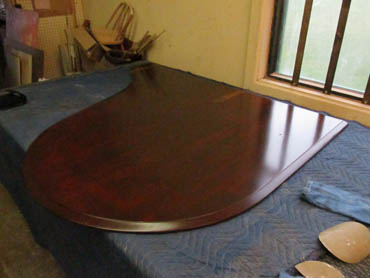

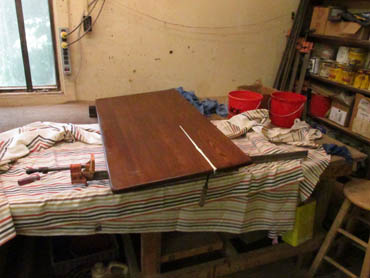

Piano lid repair and refinishing

piano43 piano44

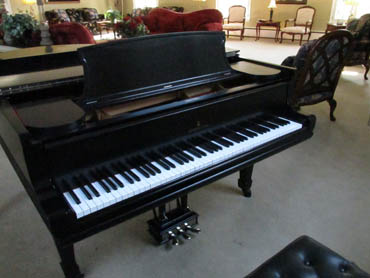

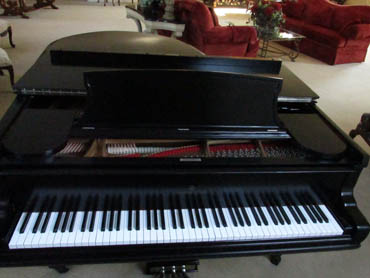

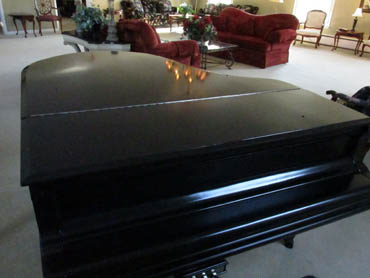

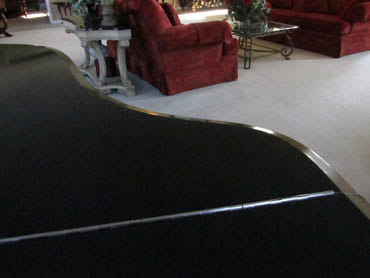

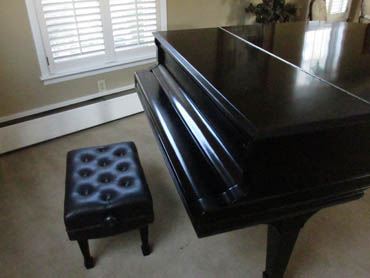

The rebuild Steinway & Sons grand piano (Model A, Serial Number 77972) has been delivered to a client

piano45 piano46

piano47 piano48

piano49 piano50
